1500 KW DDC / MTU DIESEL GENERATOR
-Mfg. 2001
-Marathon Generator End
-Generator Set Model Number: DAPE04181500
-Generator Set Serial Number: 3542J01
-Rated 1500 kw / 1875 kva
-Setup 277/480 Volt, 3 Phase ONLY (2255 Amps)
-NOT Reconnectable to Other Voltages
-6 Wire
-60 Hertz, 1800 RPM, 0.8 PF
-24 Battery Volts

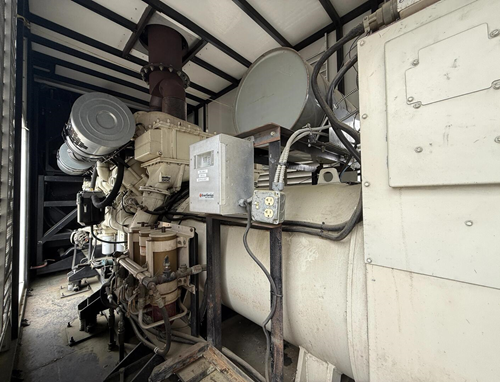

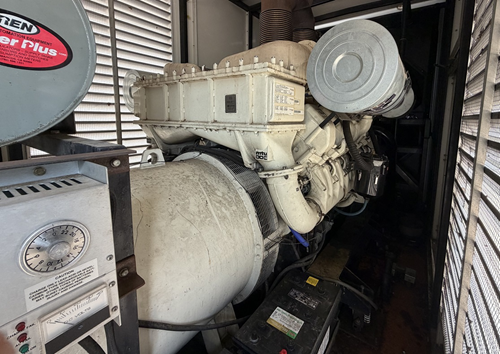

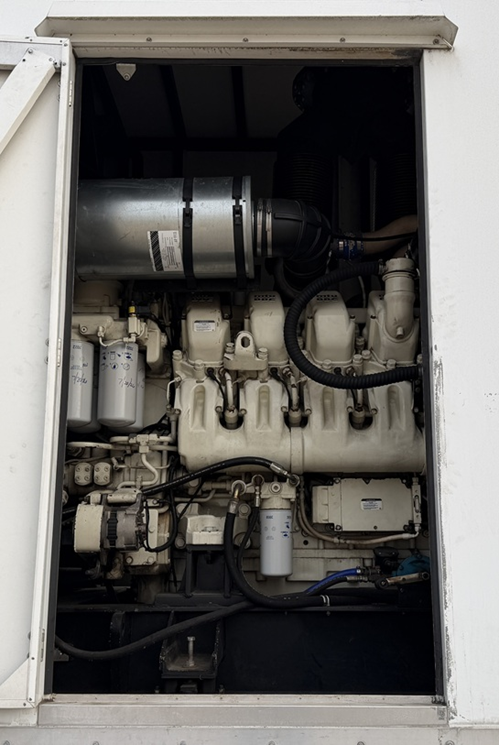

-Powered by a 48.7L V12 Quad Turbocharged Series 4000 Detroit Diesel Engine
-Unit Number: 5262001010
-S.O. Number: 1487375
-Model Number: T1237K36
-Spec: VDDA/GE Digital
-Tested at 2200 HP
-Skid-Mounted
-Radiator Cooled

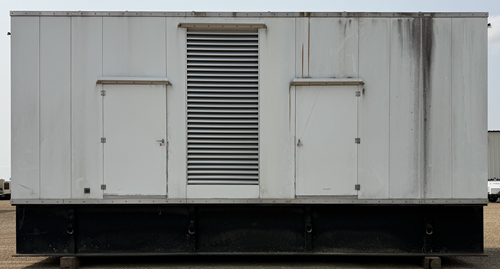

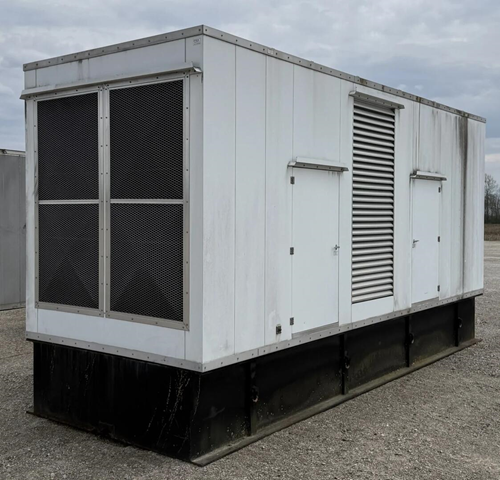

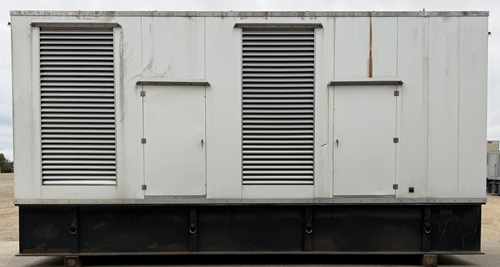

-Weatherproof Enclosure
-Approx. 3,000 Gallon Secondary Containment Base Fuel Tank Mfg. by STECA, Inc. (UL Listed)

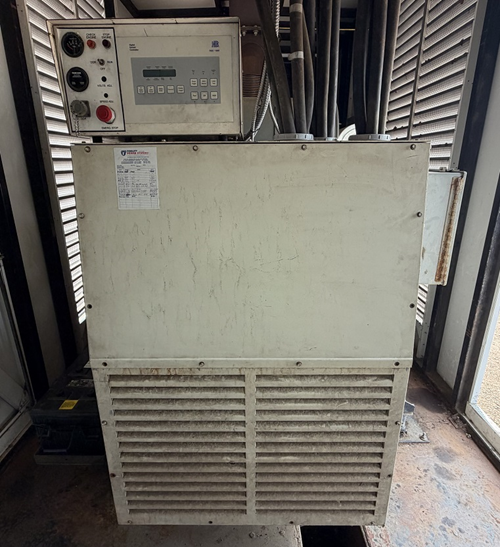

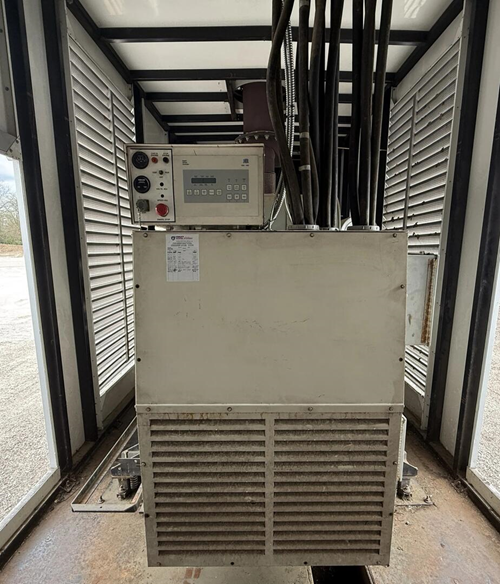

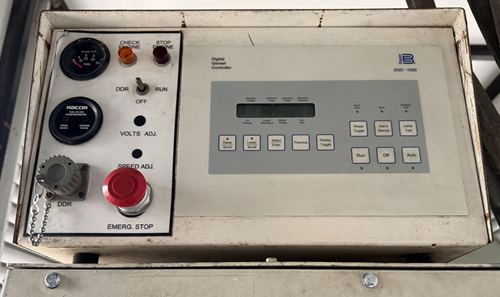

-Basler DGC-1000 Digital Control Panel
-2000 Amp 3 Pole Square D Mainline Circuit Breaker
-(2) Jacket Water Heaters
-Alternator
-(2) Battery Chargers
-Electronic Governor
-Mechanical Lift Pump w/ Primer
-Common Rail Injection
-Isolation Vibration Feet
-Lifting Hooks (Mounted To Tank)
-Muffler (Shipped Loose)
-544 Total Hours Since New
-Weight: 51,500 lbs.
-Generator Dimensions: 308"L x 110"W x 164"H (157"H w/ Flange Separated)
-Muffler Dimensions: 184"L x 37"W
-LOAD BANK TESTED -- SOLD
kw
1500 kw |
 |
brand
DDC / MTU (Enclosed w/ Base Tank, Series 4000, 544 Hours, Mfg. 2001) |
|
model
DAPE04181500 |
serial #
3542J01 |
|
price
SOLD |
